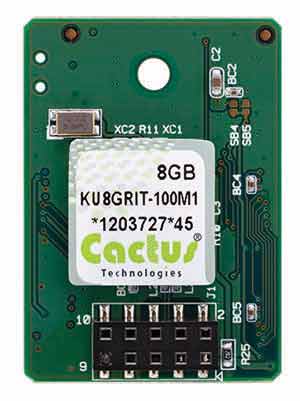

Cactus 100 Series Industrial Grade USB DOM
Cactus Industrial Grade USB Disk On Module (DOM) is a rugged, highly reliable, high endurance flash storage device which conforms to the USB Implementer Forum’s specifications. It is compliant with USB2.0 and USB Mass Storage Class specifications v1.0. As with our other Industrial Grade devices, the USB products are designed with the highest quality SLC NAND for applications which demand data integrity and 100% uptime.
The USB Disk On Module is designed for embedded flash storage applications and connects to the host system via a 10-pin connector. This product has an optional -45C to 90C extended temperature range version.
Specifications
|
CAPACITIES |
128MB – 8GB |
|
MEMORY TYPE |
SLC NAND |
|
ENDURANCE CYCLES |
>2MILLION |
|
MTBF (HOURS) |
4MILLION |
|
WARRANTY |
5 YEARS |
|
STANDARD TEMPERATURE |
0°C TO 70°C |
|
EXTENDED TEMPERATURE |
-40°C TO 90°C |
|
SEQUENTIAL READ |
30MB/S |
|
SEQUENTIAL WRITE |
25MB/S |
|
SHOCK/VIBRATION |
3000/30 |
|
PRO FEATURE SET |
NO |
|
SMART FEATURE |
YES |
