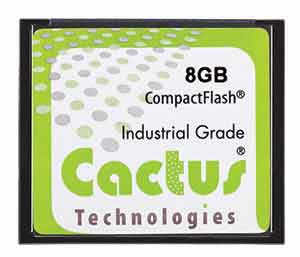

Cactus 203 Series Industrial Grade Compact Flash Card
Cactus Industrial Grade Compact Flash cards (CF) are the most reliable, high endurance flash storage devices on the market today. They are designed with the highest quality SLC NAND for applications which demand data integrity and 100% uptime. The Compact Flash form factor has been in existence since 1995 and its small size and rugged construction is ideal for many embedded flash storage requirements.
We offer several varieties of Industrial Grade Compact Flash below to meet different application needs. Each Industrial CF Card has an optional -45C to 90C extended temperature range version and the Pro Series offering has many special features including military erasure, write protect, security and locking.
Specifications
|
CAPACITIES |
32MB - 2GB |
|
MEMORY TYPE |
SLC NAND |
|
ENDURANCE CYCLES |
>2MILLION |
|
MTBF (HOURS) |
4MILLION |
|
WARRANTY |
5 YEARS |
|
STANDARD TEMPERATURE |
0°C TO 70°C |
|
EXTENDED TEMPERATURE |
-45°C TO 90°C |
|
SEQUENTIAL READ |
8MB/S |
|
SEQUENTIAL WRITE |
6MB/S |
|
SHOCK/VIBRATION |
3000/30 |
|
UDMA |
NA |
|
PRO FEATURE |
NO |
|
SMART FEATURE |
SIMILAR FEATURE | |
